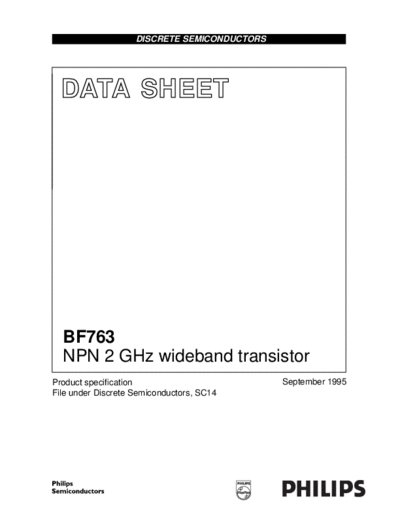

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BF763
  NPN 2 GHz wideband transistor
Product specification                         September 1995
File under Discrete Semiconductors, SC14
Philips Semiconductors                                                                                 Product specification


     NPN 2 GHz wideband transistor                                                                                    BF763

DESCRIPTION                                PINNING
NPN transistor in a plastic SOT54           PIN             DESCRIPTION
(TO-92 variant) envelope.
                                                        Code: F763                            1
It is primarily intended for use in RF                                                            2
                                             1       emitter                                       3
amplifiers and oscillators.
                                             2       base
                                             3       collector
                                                                                                                       MSB034




                                                                                                  Fig.1 SOT54.


QUICK REFERENCE DATA

 SYMBOL                  PARAMETER                                   CONDITIONS          MIN.           TYP.       MAX.       UNIT
V(BR)CEO     collector-emitter breakdown voltage open base                               15            -          -           V
IC           DC collector current                                                        -             -          25          mA
Ptot         total power dissipation                 up to Tamb = 60
