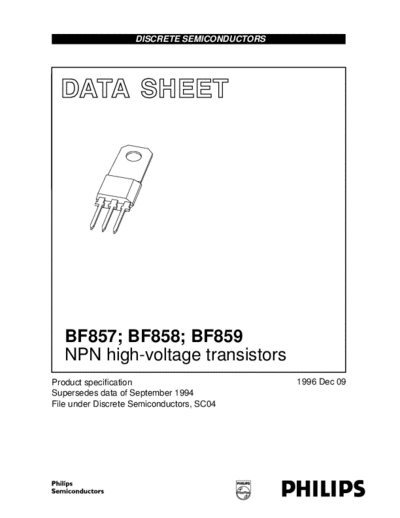

Image preview - the first page of the document
bf857_bf858_bf859


>> Download bf857_bf858_bf859 documenatation <<

Text preview - extract from the document
                    DISCRETE SEMICONDUCTORS




  DATA SHEET




                    M3D067




   BF857; BF858; BF859
   NPN high-voltage transistors
Product specification                         1996 Dec 09
Supersedes data of September 1994
File under Discrete Semiconductors, SC04
Philips Semiconductors                                                                                      Product specification


     NPN high-voltage transistors                                                            BF857; BF858; BF859

DESCRIPTION
NPN transistors in a TO-202 plastic package.
                                                                handbook, halfpage
An A-version with e-b-c pinning instead of e-c-b is
available on request.
