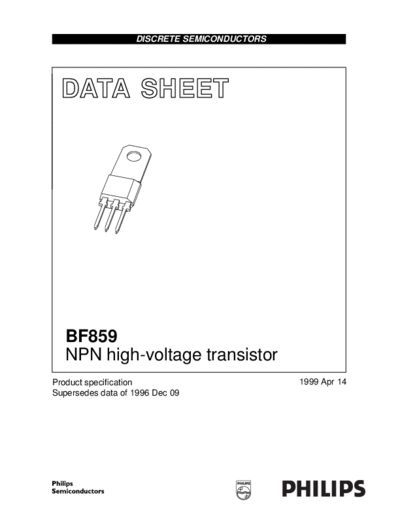

Image preview - the first page of the document



>> Download bf859 documenatation <<

Text preview - extract from the document

                       DISCRETE SEMICONDUCTORS




  DATA SHEET

  handbook, halfpage




                       M3D067




   BF859
   NPN high-voltage transistor
Product specification                            1999 Apr 14
Supersedes data of 1996 Dec 09
Philips Semiconductors                                                                                 Product specification


  NPN high-voltage transistor                                                                                        BF859

DESCRIPTION
NPN transistor in a TO-202 plastic package.
                                                                handbook, halfpage
An A-version with e-b-c pinning instead of e-c-b is
available on request.


APPLICATIONS
