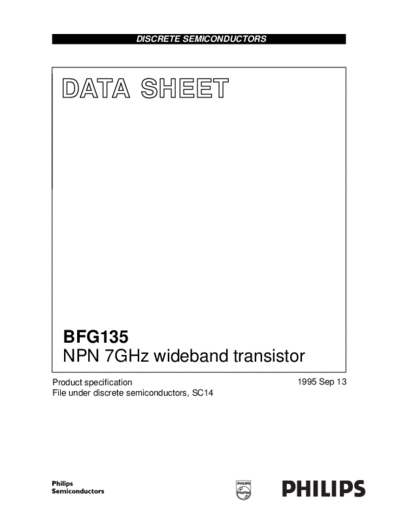

Image preview - the first page of the document
>> Download bfg135_3 documenatation <<
Text preview - extract from the document
DISCRETE SEMICONDUCTORS
DATA SHEET
BFG135
NPN 7GHz wideband transistor
Product specification 1995 Sep 13
File under discrete semiconductors, SC14
Philips Semiconductors Product specification
NPN 7GHz wideband transistor BFG135
DESCRIPTION PINNING
NPN silicon planar epitaxial transistor PIN DESCRIPTION
in a plastic SOT223 envelope, age 4
1 emitter
intended for wideband amplifier
applications. The small emitter 2 base
structures, with integrated 3 emitter
emitter-ballasting resistors, ensure 4 collector
high output voltage capabilities at a
low distortion level.
The distribution of the active areas
across the surface of the device gives
an excellent temperature profile. 1 2 3
Top view MSB002 - 1
Fig.1 SOT223.
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
VCBO collector-base voltage open emitter - - 25 V
VCEO collector-emitter voltage open base - - 15 V
IC DC collector current - - 150 mA
Ptot total power dissipation up to Ts = 145 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
