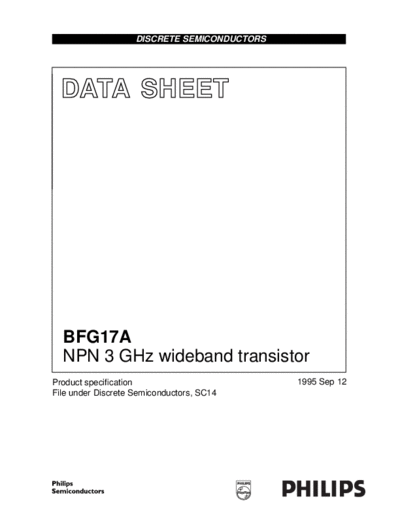

Image preview - the first page of the document



>> Download bfg17 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BFG17A
  NPN 3 GHz wideband transistor
Product specification                         1995 Sep 12
File under Discrete Semiconductors, SC14
Philips Semiconductors                                                                                     Product specification


     NPN 3 GHz wideband transistor                                                                               BFG17A

DESCRIPTION                               PINNING
NPN wideband transistor in a                   PIN           DESCRIPTION
microminiature plastic SOT143                                                                     4
                                                                                     handbook, 2 columns                3
                                           Code: E6
surface mounting envelope with
double emitter bonding.                    1          collector
                                           2          base
It is intended for use in wideband
aerial amplifiers using SMD                3          emitter                                    1                      2
technology.                                4          emitter
                                                                                                Top view             MSB014




                                                                                                     Fig.1 SOT143.



QUICK REFERENCE DATA

  SYMBOL                PARAMETER                                 CONDITIONS               MIN.        TYP.      MAX.         UNIT
VCBO          collector-base voltage                 open emitter                         -           -          25           V
VCEO          collector-emitter voltage              open base                            -           -          15           V
IC            DC collector current                                                        -           -          50           mA
Ptot          total power dissipation                up to Ts = 85
