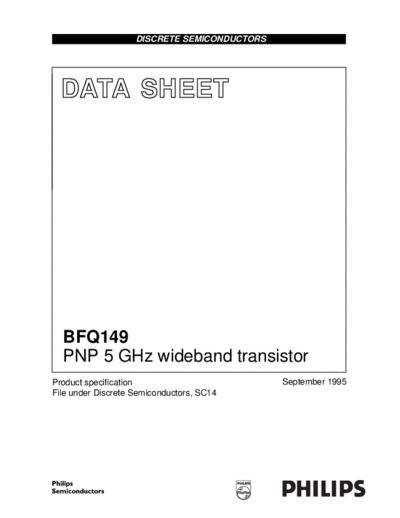

Image preview - the first page of the document
bfq149_cnv_2


>> Download bfq149_cnv_2 documenatation <<

Text preview - extract from the document
                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BFQ149
  PNP 5 GHz wideband transistor
Product specification                         September 1995
File under Discrete Semiconductors, SC14
Philips Semiconductors                                                                             Product specification


     PNP 5 GHz wideband transistor                                                                                BFQ149

DESCRIPTION                               PINNING
PNP transistor in a SOT89 envelope.          PIN            DESCRIPTION
It is intended for use in
                                                        Code: FG
UHF applications such as broadband                                              fpage
aerial amplifiers (30 to 860 MHz) and         1      emitter
in microwave amplifiers such as radar         2      collector
systems, spectrum analyzers, etc.,            3      base
using SMD technology.
                                                                                                   1          2       3

                                                                                             Bottom view          MBK514




                                                                                              Fig.1 SOT89.



QUICK REFERENCE DATA

 SYMBOL                 PARAMETER                                  CONDITIONS           MIN.           TYP.       MAX.         UNIT
VCEO         collector-emitter voltage             open base                            -          -              -15         V
IC           DC collector current                                                       -          -              -100        mA
Ptot         total power dissipation               up to Ts = 135
