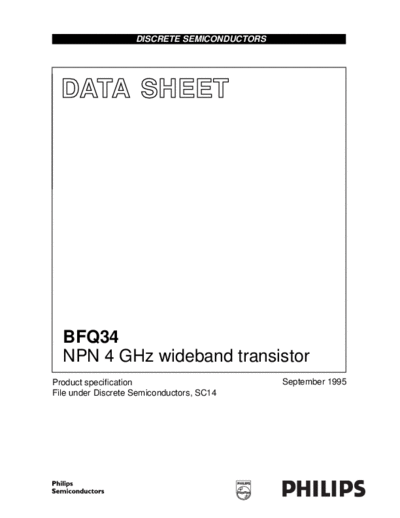

Image preview - the first page of the document
>> Download bfq34_cnv_2 documenatation <<
Text preview - extract from the document
DISCRETE SEMICONDUCTORS
DATA SHEET
BFQ34
NPN 4 GHz wideband transistor
Product specification September 1995
File under Discrete Semiconductors, SC14
Philips Semiconductors Product specification
NPN 4 GHz wideband transistor BFQ34
DESCRIPTION PINNING
NPN transistor encapsulated in a 4 PIN DESCRIPTION
lead SOT122A envelope with a
Code: BFQ34/01
ceramic cap. All leads are isolated lfpage 4
from the stud. 1 collector
2 emitter 1 3
It is primarily intended for driver and
final stages in MATV system 3 base
amplifiers. It is also suitable for use in 4 emitter
low power band IV and V equipment.
2
Diffused emitter-ballasting resistors
and the application of gold sandwich Top view MBK187
metallization ensure an optimum
temperature profile and excellent
reliability properties. The device also
features high output voltage
Fig.1 SOT122A.
capabilities.
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT
VCBO collector-base voltage open emitter - 25 V
VCEO collector-emitter voltage open base - 18 V
IC collector current - 150 mA
Ptot total power dissipation up to Tc = 160 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
