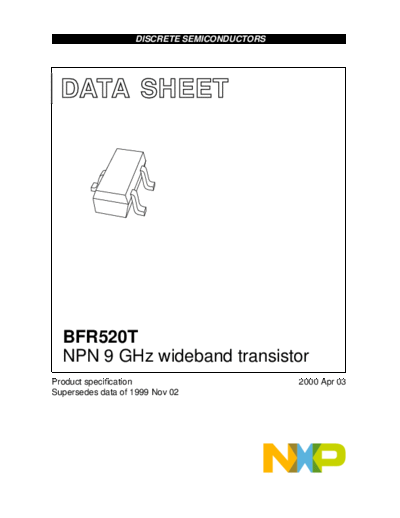

bfr520t


>> Download bfr520t documenatation <<

Text preview - extract from the document
                   DISCRETE SEMICONDUCTORS




  DATA SHEET



                     M3D173




  BFR520T
  NPN 9 GHz wideband transistor
Product specification                        2000 Apr 03
Supersedes data of 1999 Nov 02
NXP Semiconductors                                                                                                Product specification


     NPN 9 GHz wideband transistor                                                                                       BFR520T

FEATURES                                   DESCRIPTION
 High power gain                           Silicon NPN transistor encapsulated
 Low noise figure                          in a plastic SOT416 (SC-75) package.                                          3
                                                                                       lfpage

 High transition frequency
 Gold metallization ensures                PINNING
 excellent reliability                        PIN             DESCRIPTION                                 1                       2
 SOT416 (SC-75) package.                       1       base                                           Top view                  MBK090

                                               2       emitter
APPLICATIONS                                   3       collector                                Marking code: N2.
Wideband applications such as
satellite TV tuners, cellular phones,
                                                                                                        Fig.1 SOT416.
cordless phones, pagers etc., with
signal frequencies up to 2 GHz.

QUICK REFERENCE DATA

  SYMBOL               PARAMETER                               CONDITIONS                        MIN.         TYP.           MAX.          UNIT
VCBO           collector-base voltage              open emitter                                                              20           V
VCES           collector-emitter voltage           RBE = 0                                                                   15           V
IC             DC collector current                                                                                          70           mA
Ptot           total power dissipation             up to Ts = 75 C; note 1                                                   150          mW
hFE            DC current gain                     IC = 20 mA; VCE = 6 V; Tj = 25 C             60            120            250
fT             transition frequency                IC = 20 mA; VCE = 6 V; f = 1 GHz;                          9                           GHz
                                                   Tamb = 25 C
GUM            maximum unilateral power            IC = 20 mA; VCE = 6 V; f = 900 MHz;                        15                          dB
               gain                                Tamb = 25 C
F              noise figure                        IC = 5 mA; VCE = 6 V; f = 900 MHz;                         1.1            1.6          dB
                                                   Tamb = 25 C

Note
1. Ts is the temperature at the soldering point of the collector tab.


LIMITING VALUES
In accordance with the Absolute Maximum System (IEC 60134).
  SYMBOL               PARAMETER                               CONDITIONS                          MIN.             MAX.                  UNIT
VCBO           collector-base voltage              open emitter                                                    20                 V
VCES           collector-emitter voltage           RBE = 0                                                         15                 V
VEBO           emitter-base voltage                open collector                                                  2.5                V
IC             DC collector current                                                                                70                 mA
Ptot           total power dissipation             up to Ts = 75 C; note 1                                         150                mW
Tstg           storage temperature                                                              65                 +150               C
Tj             junction temperature                                                                                150                C

Note
1. Ts is the temperature at the soldering point of the collector tab.


2000 Apr 03                                                      2
NXP Semiconductors                                                                                                                    Product specification


     NPN 9 GHz wideband transistor                                                                                                       BFR520T

THERMAL CHARACTERISTICS

 SYMBOL                                                                     PARAMETER                                          VALUE              UNIT
Rth j-s             thermal resistance from junction to soldering point                                                         500               K/W


CHARACTERISTICS
Tj = 25 C unless otherwise specified.

 SYMBOL                             PARAMETER                                                    CONDITIONS               MIN.    TYP.      MAX.    UNIT
ICBO                collector cut-off current                                       IE = 0; VCE = 6 V                                       50      nA
hFE                 DC current gain                                                 IC = 20 mA; VCE = 6 V                 60      120       250
Ce                  emitter capacitance                                             IC = ic = 0; VEB = 0.5 V; f = 1 MHz           1                 pF
Cc                  collector capacitance                                           IE = ie = 0; VCB = 6 V; f = 1 MHz             0.5               pF
Cre                 feedback capacitance                                            IC = 0; VCB = 6 V; f = 1 MHz                  0.4               pF
fT                  transition frequency                                            IC = 20 mA; VCE = 6 V; f = 1 GHz;             9                 GHz
                                                                                    Tamb = 25 C
GUM                 maximum unilateral power                                        IC = 20 mA; VCE = 6 V; f = 900 MHz;           15                dB
                    gain; note 1                                                    Tamb = 25 C
                                                                                    IC = 20 mA; VCE = 6 V; f = 2 GHz;             9                 dB
                                                                                    Tamb = 25 C
s212                insertion power gain                                            IC = 20 mA; VCE = 6 V; f = 900 MHz;   13      14                dB
                                                                                    Tamb = 25 C
F                   noise figure                                                    s = opt; IC = 5 mA; VCE = 6 V;                1.1       1.6     dB
                                                                                    f = 900 MHz; Tamb = 25 C
                                                                                    s = opt; IC = 20 mA; VCE = 6 V;               1.6       2.1     dB
                                                                                    f = 900 MHz; Tamb = 25 C
                                                                                    s = opt; IC = 5 mA; VCE = 6 V;                1.9               dB
                                                                                    f = 2 GHz; Tamb = 25 C
PL1                 output power at 1 dB gain                                       IC = 20 mA; VCE = 6 V; RL = 50 ;              17                dBm
                    compression                                                     f = 900 MHz; Tamb = 25 C
ITO                 third order intercept point                                     note 2                                        26                dBm

Notes
1. GUM is the maximum unilateral power gain, assuming s12 is zero and
                                                        2
                                              s 21
       G UM   = 10 log ------------------------------------------------------- dB
                                              2                            2
                                                                             -
                        1
