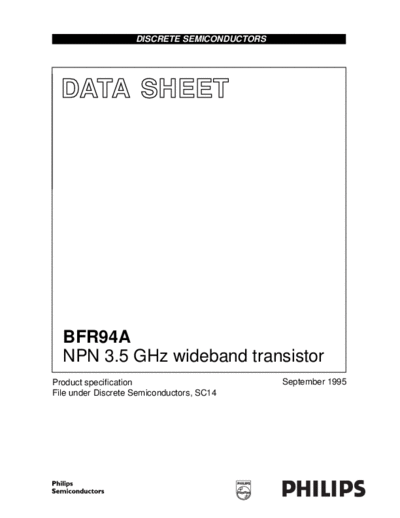

Image preview - the first page of the document
>> Download bfr94a_cnv_2 documenatation <<
Text preview - extract from the document
DISCRETE SEMICONDUCTORS
DATA SHEET
BFR94A
NPN 3.5 GHz wideband transistor
Product specification September 1995
File under Discrete Semiconductors, SC14
Philips Semiconductors Product specification
NPN 3.5 GHz wideband transistor BFR94A
DESCRIPTION PINNING
NPN resistance-stabilized transistor PIN DESCRIPTION
in a SOT122E capstan envelope.
1 collector
It features extremely low cross 2 emitter
modulation, intermodulation and
3 base lfpage 4
second order intermodulation
distortion. Due to its high transition 4 emitter
frequency, it has a high power gain, in 3
C
conjunction with good wideband 1
properties, and low noise up to high
frequencies. 2 MBB904
It is primarily intended for CATV and
MATV applications.
The BFR94A is a replacement for the
BFR94. The SOT122E footprint is
similar to that of the SOT48, used for Fig.1 SOT122E.
the BFR94.
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT
VCBO collector-base voltage open emitter - 30 V
VCEO collector-emitter voltage open base - 25 V
IC DC collector current - 150 mA
Ptot total power dissipation up to Tc = 145 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
