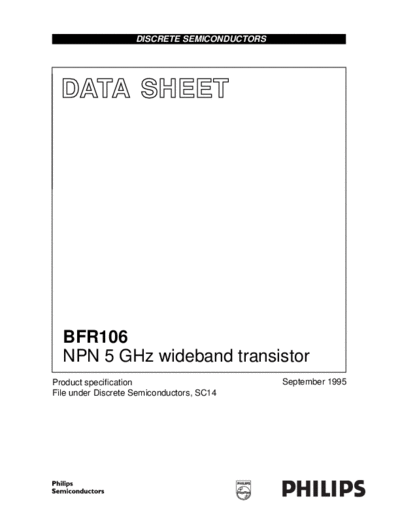

Image preview - the first page of the document



>> Download bfr106_cnv_2 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BFR106
  NPN 5 GHz wideband transistor
Product specification                         September 1995
File under Discrete Semiconductors, SC14
Philips Semiconductors                                                                               Product specification


     NPN 5 GHz wideband transistor                                                                               BFR106

DESCRIPTION                                PINNING
NPN silicon planar epitaxial transistor     PIN           DESCRIPTION
in a plastic SOT23 envelope. It is                                                  age                     3
                                                       Code: R7p
primarily intended for low noise,
general RF applications.                      1      base
                                              2      emitter
                                              3      collector                                 1                      2

                                                                                               Top view         MSB003



                                                                                                   Fig.1 SOT23.



QUICK REFERENCE DATA

 SYMBOL                 PARAMETER                                    CONDITIONS           MIN.       TYP.        MAX.         UNIT
VCBO         collector-base voltage               open emitter                            -          -           20           V
VCEO         collector-emitter voltage            open base                               -          -           15           V
IC           DC collector current                                                         -          -           100          mA
Ptot         total power dissipation              up to Ts = 70
