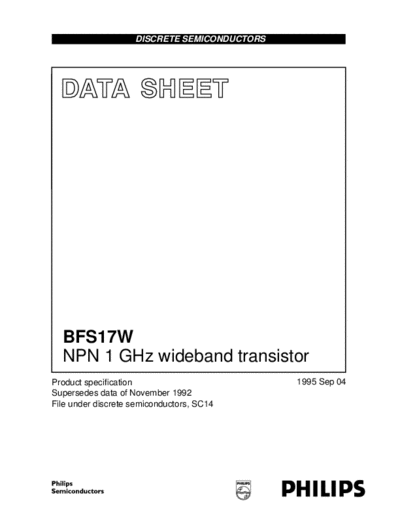

Image preview - the first page of the document
bfs17w_2


>> Download bfs17w_2 documenatation <<

Text preview - extract from the document
                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BFS17W
  NPN 1 GHz wideband transistor
Product specification                         1995 Sep 04
Supersedes data of November 1992
File under discrete semiconductors, SC14
Philips Semiconductors                                                                               Product specification


     NPN 1 GHz wideband transistor                                                                           BFS17W

APPLICATIONS                              PINNING
                                                                               handbook, 2 columns
Primarily intended as a mixer,                                                                               3
                                             PIN            DESCRIPTION
oscillator and IF amplifier in UHF and
                                               1     base
VHF tuners.
                                               2     emitter
                                               3     collector
DESCRIPTION
Silicon NPN transistor in a plastic                                                                  1               2
SOT323 (S-mini) package. The
                                                                                          Top view               MBC870
BFS17W uses the same crystal as
the SOT23 version, BFS17.                                                       Marking code: E1

                                                                                              Fig.1 SOT323



QUICK REFERENCE DATA

 SYMBOL              PARAMETER                           CONDITIONS                MIN.         TYP.      MAX.            UNIT
VCBO          collector-base voltage                                           -            -            25               V
VCEO          collector-emitter voltage                                        -            -            15               V
IC            DC collector current                                             -            -            50               mA
Ptot          total power dissipation        up to Ts = 118
