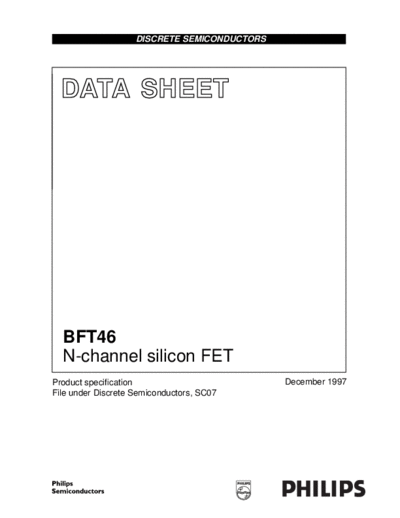

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BFT46
  N-channel silicon FET
Product specification                         December 1997
File under Discrete Semiconductors, SC07
Philips Semiconductors                                                                         Product specification


  N-channel silicon FET                                                                                 BFT46

DESCRIPTION
Symmetrical n-channel silicon
epitaxial planar junction field-effect
transistor in a microminiature plastic
envelope. The transistor is intended
for low level general purpose                                             3
                                                 handbook, halfpage
amplifiers in thick and thin-film
circuits.                                                                                      d
                                                                                      g
                                                                                               s

PINNING                                                         1             2
1 = drain                                                      Top view               MAM385

2 = source
3 = gate


Note : Drain and source are                              Fig.1 Simplified outline and symbol, SOT23.
interchangeable.

                                         Marking code
                                         BFT46 = M3p



QUICK REFERENCE DATA
Drain-source voltage
