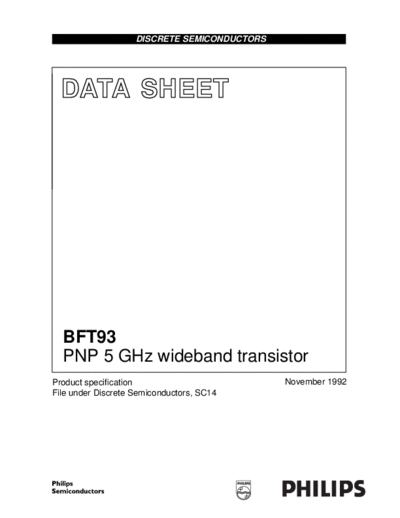

Image preview - the first page of the document
bft93_cnv_2


>> Download bft93_cnv_2 documenatation <<

Text preview - extract from the document
                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BFT93
  PNP 5 GHz wideband transistor
Product specification                         November 1992
File under Discrete Semiconductors, SC14
Philips Semiconductors                                                                             Product specification


     PNP 5 GHz wideband transistor                                                                                BFT93

DESCRIPTION                                PINNING
PNP transistor in a plastic SOT23            PIN             DESCRIPTION
envelope.
                                                         Code: X1p
It is primarily intended for use in RF        1       base
wideband amplifiers, such as in aerial                                            fpage                   3
                                              2       emitter
amplifiers, radar systems,
oscilloscopes, spectrum analyzers,            3       collector
etc. The transistor features low
intermodulation distortion and high                                                          1                    2
power gain; due to its very high
                                                                                             Top view         MSB003
transition frequency, it also has
excellent wideband properties and
low noise up to high frequencies.
NPN complements are BFR93 and                                                                    Fig.1 SOT23.
BFR93A.


QUICK REFERENCE DATA

     SYMBOL               PARAMETER                                 CONDITIONS                     TYP.       MAX.     UNIT
VCBO             collector-base voltage              open emitter                                  -          -15      V
VCEO             collector-emitter voltage           open base                                     -          -12      V
Ic               DC collector current                                                              -          -35      mA
Ptot             total power dissipation             up to Ts = 95
