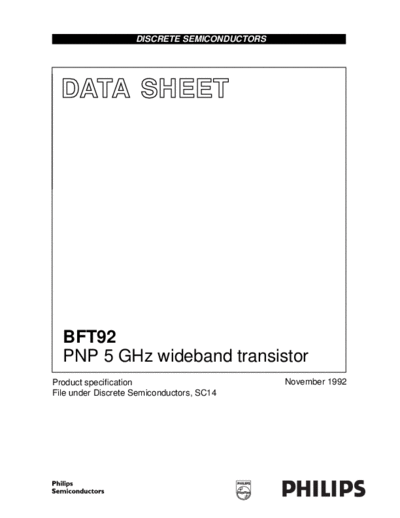

Image preview - the first page of the document



>> Download bft92_cnv_2 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BFT92
  PNP 5 GHz wideband transistor
Product specification                         November 1992
File under Discrete Semiconductors, SC14
Philips Semiconductors                                                                              Product specification


     PNP 5 GHz wideband transistor                                                                                 BFT92

DESCRIPTION                               PINNING
PNP transistor in a plastic SOT23            PIN            DESCRIPTION
envelope.
                                                       Code: W1p
It is primarily intended for use in RF        1      base                         fpage                    3
wideband amplifiers, such as in aerial
                                              2      emitter
amplifiers, radar systems,
oscilloscopes, spectrum analyzers,            3      collector
etc. The transistor features low
intermodulation distortion and high                                                           1                      2
power gain; due to its very high                                                              Top view         MSB003
transition frequency, it also has
excellent wideband properties and
low noise up to high frequencies.
                                                                                                  Fig.1 SOT23.
NPN complements are BFR92 and
BFR92A.


QUICK REFERENCE DATA

 SYMBOL                     PARAMETER                                CONDITIONS                     TYP.       MAX.      UNIT
VCBO         collector-base voltage                   open emitter                                 -           -20       V
VCEO         collector-emitter voltage                open base                                    -           -15       V
IC           DC collector current                                                                  -           -25       mA
Ptot         total power dissipation                  up to Ts = 95
