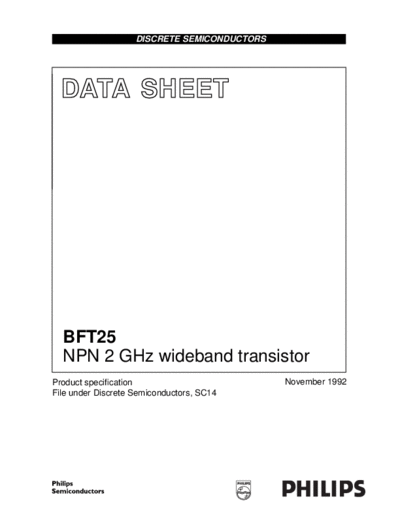

Image preview - the first page of the document



>> Download bft25_cnv_2 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BFT25
  NPN 2 GHz wideband transistor
Product specification                         November 1992
File under Discrete Semiconductors, SC14
Philips Semiconductors                                                                                   Product specification


     NPN 2 GHz wideband transistor                                                                                         BFT25

DESCRIPTION                                  PINNING
NPN transistor in a plastic SOT23              PIN             DESCRIPTION
envelope.
                                                          Code: V1p
It is primarily intended for use in RF          1       base                         fpage                          3
low power amplifiers, such as in
                                                2       emitter
pocket phones, paging systems, etc.
The transistor features low current             3       collector
consumption (100
