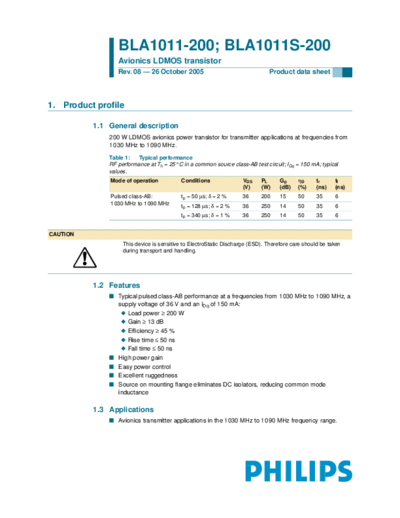

                 BLA1011-200; BLA1011S-200
                 Avionics LDMOS transistor
                 Rev. 08 -- 26 October 2005                                   Product data sheet




1. Product profile

          1.1 General description
              200 W LDMOS avionics power transistor for transmitter applications at frequencies from
              1030 MHz to 1090 MHz.

              Table 1:   Typical performance
              RF performance at Th = 25
