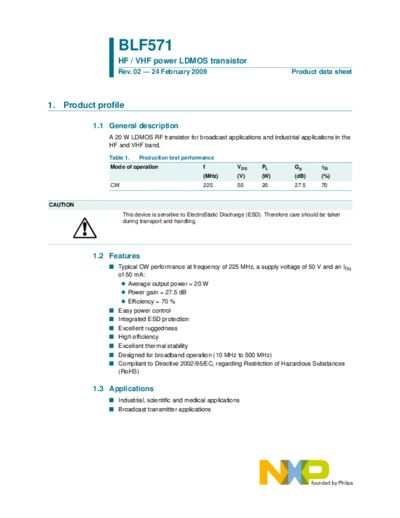

Image preview - the first page of the document
>> Download blf571 documenatation <<Text preview - extract from the document BLF571
HF / VHF power LDMOS transistor
Rev. 02 -- 24 February 2009 Product data sheet
1. Product profile
1.1 General description
A 20 W LDMOS RF transistor for broadcast applications and industrial applications in the
HF and VHF band.
Table 1. Production test performance
Mode of operation f VDS PL Gp D
(MHz) (V) (W) (dB) (%)
CW 225 50 20 27.5 70
CAUTION
This device is sensitive to ElectroStatic Discharge (ESD). Therefore care should be taken
during transport and handling.
1.2 Features
I Typical CW performance at frequency of 225 MHz, a supply voltage of 50 V and an IDq
of 50 mA:
N Average output power = 20 W
N Power gain = 27.5 dB
N Efficiency = 70 %
I Easy power control
I Integrated ESD protection
I Excellent ruggedness
I High efficiency
I Excellent thermal stability
I Designed for broadband operation (10 MHz to 500 MHz)
I Compliant to Directive 2002/95/EC, regarding Restriction of Hazardous Substances
(RoHS)
1.3 Applications
I Industrial, scientific and medical applications
I Broadcast transmitter applications
NXP Semiconductors BLF571
HF / VHF power LDMOS transistor
2. Pinning information
Table 2. Pinning
Pin Description Simplified outline Graphic symbol
1 drain
1 1
2 gate
3 source [1]
3
2
3
2 sym112
[1] Connected to flange.
3. Ordering information
Table 3. Ordering information
Type number Package
Name Description Version
BLF571 - flanged LDMOST ceramic package; 2 mounting holes; SOT467C
2 leads
4. Limiting values
Table 4. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VDS drain-source voltage - 110 V
VGS gate-source voltage -0.5 +11 V
ID drain current - 3.6 A
Tstg storage temperature -65 +150
