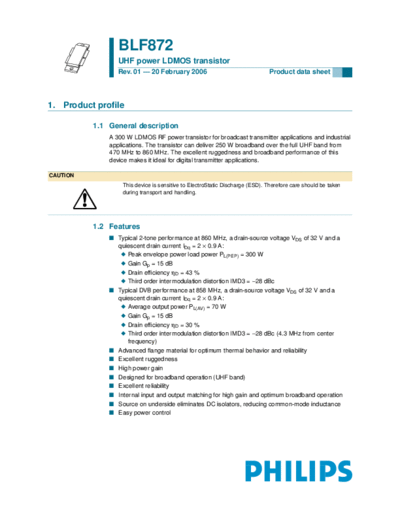

Image preview - the first page of the document



>> Download blf872_1 documenatation <<

Text preview - extract from the document

                 BLF872
                 UHF power LDMOS transistor
                 Rev. 01 -- 20 February 2006                                 Product data sheet




1. Product profile

          1.1 General description
              A 300 W LDMOS RF power transistor for broadcast transmitter applications and industrial
              applications. The transistor can deliver 250 W broadband over the full UHF band from
              470 MHz to 860 MHz. The excellent ruggedness and broadband performance of this
              device makes it ideal for digital transmitter applications.

CAUTION
                  This device is sensitive to ElectroStatic Discharge (ESD). Therefore care should be taken
                  during transport and handling.




          1.2 Features
              s Typical 2-tone performance at 860 MHz, a drain-source voltage VDS of 32 V and a
                quiescent drain current IDq = 2
