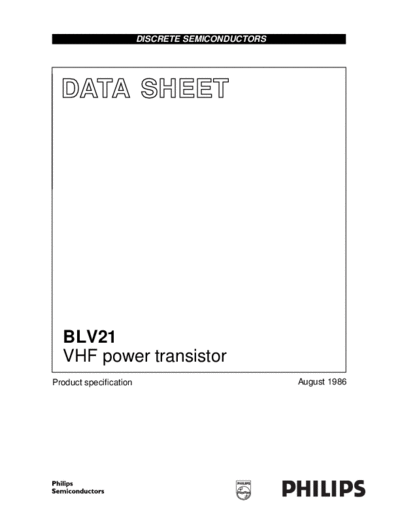

Image preview - the first page of the document



>> Download blv21 documenatation <<

Text preview - extract from the document

                        DISCRETE SEMICONDUCTORS




  DATA SHEET




  BLV21
  VHF power transistor
Product specification                             August 1986
Philips Semiconductors                                                                                      Product specification


  VHF power transistor                                                                                               BLV21

DESCRIPTION                                  It has a 3/8" flange envelope with a
                                             ceramic cap. All leads are isolated
N-P-N silicon planar epitaxial
                                             from the flange.
transistor intended for use in class-A,
B and C operated h.f. and v.h.f.
transmitters with a nominal supply
voltage of 28 V. The transistor is
resistance stabilized and is
guaranteed to withstand severe load
mismatch conditions.




QUICK REFERENCE DATA
R.F. performance up to Th = 25
