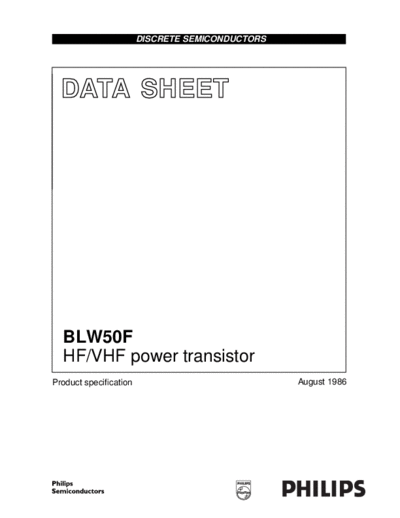

Image preview - the first page of the document



>> Download blw50f documenatation <<

Text preview - extract from the document

                        DISCRETE SEMICONDUCTORS




  DATA SHEET




  BLW50F
  HF/VHF power transistor
Product specification                             August 1986
 Philips Semiconductors                                                                                       Product specification


     HF/VHF power transistor                                                                                            BLW50F

 DESCRIPTION                                    It has a 3/8" flange envelope with a
                                                ceramic cap. All leads are isolated
 N-P-N silicon planar epitaxial
                                                from the flange.
 transistor primarily intended for use in
 class-A, AB and B operated, industrial
 and military transmitters in the h.f.
 and v.h.f. band. Resistance
 stabilization provides protection
 against device damage at severe load
 mismatch conditions. Matched
 hFE groups are available on request.



 QUICK REFERENCE DATA
 R.F. performance
   MODE OF OPERATION            VCE           f                PL             Gp        dt            IC       IC(ZS)       d3     Th
                                 V           MHz               W              dB        %             A         mA          dB
