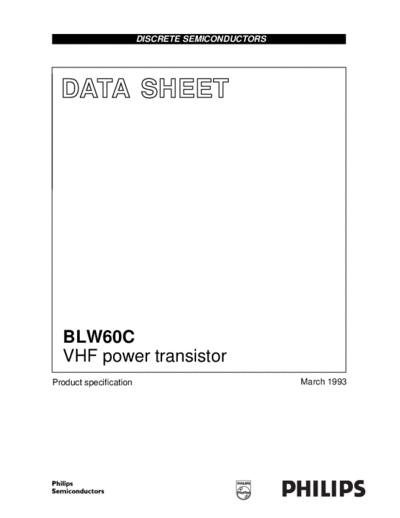

Image preview - the first page of the document



>> Download blw60c documenatation <<

Text preview - extract from the document

                        DISCRETE SEMICONDUCTORS




  DATA SHEET




  BLW60C
  VHF power transistor
Product specification                             March 1993
Philips Semiconductors                                                                                      Product specification


  VHF power transistor                                                                                                 BLW60C

DESCRIPTION                                      Matched hFE groups are available on
                                                 request.
N-P-N silicon planar epitaxial
transistor intended for use in class-A,          It has a 3/8" capstan envelope with a
B and C operated mobile, industrial              ceramic cap. All leads are isolated
and military transmitters with a                 from the stud.
nominal supply voltage of 12,5 V. The
transistor is resistance stabilized and
is guaranteed to withstand severe
load mismatch conditions with a
supply over-voltage to 16,5 V.




QUICK REFERENCE DATA
R.F. performance up to Th = 25
