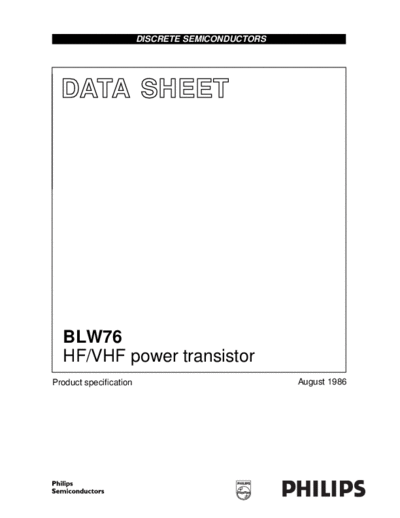

Image preview - the first page of the document



>> Download blw76 documenatation <<

Text preview - extract from the document

                        DISCRETE SEMICONDUCTORS




  DATA SHEET




  BLW76
  HF/VHF power transistor
Product specification                             August 1986
Philips Semiconductors                                                                                     Product specification


  HF/VHF power transistor                                                                                            BLW76

DESCRIPTION                                 mismatch conditions. Transistors are
                                            delivered in matched hFE groups.
N-P-N silicon planar epitaxial
transistor intended for use in class-AB     The transistor has a 1/2" flange
or class-B operated high power              envelope with a ceramic cap. All
transmitters in the h.f. and v.h.f.         leads are isolated from the flange.
bands. The transistor presents
excellent performance as a linear
amplifier in the h.f. band. It is
resistance stabilized and is
guaranteed to withstand severe load




QUICK REFERENCE DATA
R.F. performance up to Th = 25
