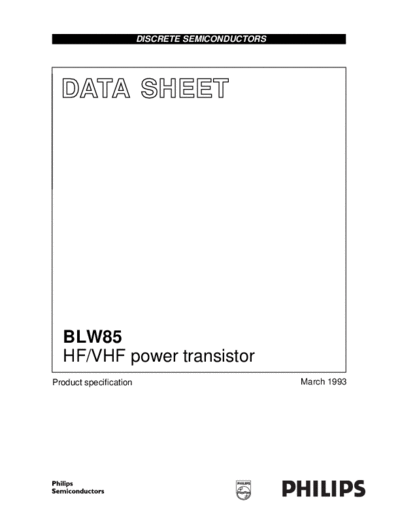

Image preview - the first page of the document



>> Download blw85 documenatation <<

Text preview - extract from the document

                        DISCRETE SEMICONDUCTORS




  DATA SHEET




  BLW85
  HF/VHF power transistor
Product specification                             March 1993
 Philips Semiconductors                                                                                           Product specification


     HF/VHF power transistor                                                                                                  BLW85

 DESCRIPTION                                   Matched hFE groups are available on
                                               request.
 N-P-N silicon planar epitaxial
 transistor intended for use in class-A,       It has a 3/8" flange envelope with a
 B and C operated mobile h.f. and              ceramic cap. All leads are isolated
 v.h.f. transmitters with a nominal            from the flange.
 supply voltage of 12,5 V. The
 transistor is resistance stabilized and
 is guaranteed to withstand severe
 load mismatch conditions with a
 supply over-voltage to 16,5 V.




 QUICK REFERENCE DATA
 R.F. performance up to Th = 25
