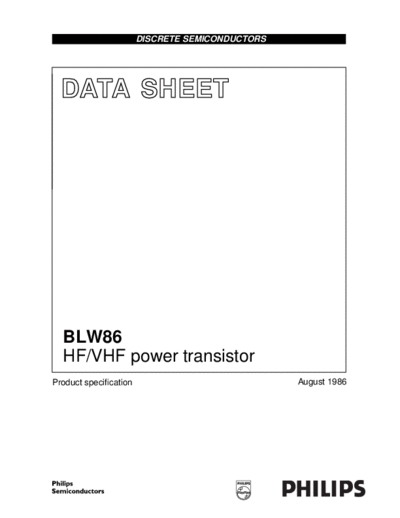

Image preview - the first page of the document



>> Download blw86 documenatation <<

Text preview - extract from the document

                        DISCRETE SEMICONDUCTORS




  DATA SHEET




  BLW86
  HF/VHF power transistor
Product specification                             August 1986
 Philips Semiconductors                                                                                                   Product specification


     HF/VHF power transistor                                                                                                          BLW86

 DESCRIPTION                                     It has a 3/8" flange envelope with a
                                                 ceramic cap. All leads are isolated
 N-P-N silicon planar epitaxial
                                                 from the flange.
 transistor intended for use in class-A,
 AB and B operated h.f. and v.h.f.
 transmitters with a nominal supply
 voltage of 28 V. The transistor is
 resistance stabilized and is
 guaranteed to withstand severe load
 mismatch conditions. Matched
 hFE groups are available on request.



 QUICK REFERENCE DATA
 R.F. performance up to Th = 25
