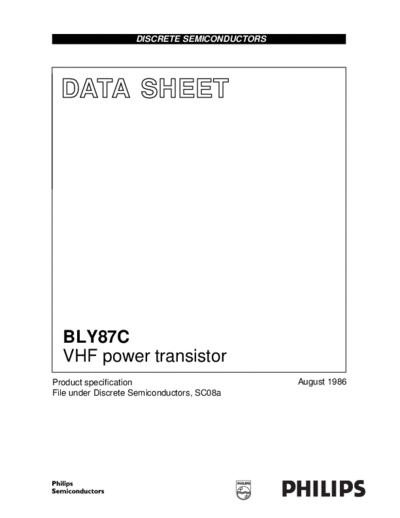

Image preview - the first page of the document



>> Download bly87c-01_cnv_2 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BLY87C
  VHF power transistor
Product specification                         August 1986
File under Discrete Semiconductors, SC08a
 Philips Semiconductors                                                                                               Product specification


    VHF power transistor                                                                                                     BLY87C

 DESCRIPTION                                    It has a 3/8" capstan envelope with a
                                                ceramic cap. All leads are isolated
 N-P-N silicon planar epitaxial
                                                from the stud.
 transistor intended for use in class-A,
 B and C operated mobile, h.f. and
 v.h.f. transmitters with a nominal
 supply voltage of 13,5 V. The
 transistor is resistance stabilized and
 is guaranteed to withstand severe
 load mismatch conditions with a
 supply over-voltage 16,5 V.



 QUICK REFERENCE DATA
 R.F. performance up to Th = 25
