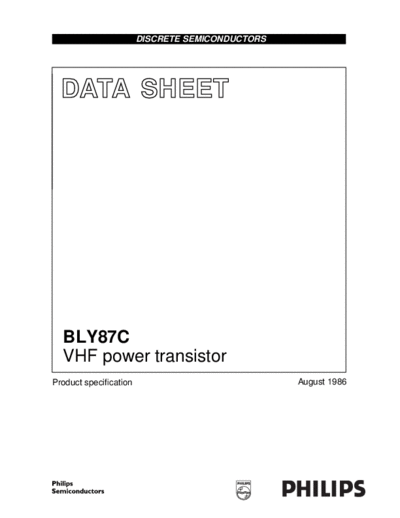

Image preview - the first page of the document



>> Download bly87c_cnv_2 documenatation <<

Text preview - extract from the document

                        DISCRETE SEMICONDUCTORS




  DATA SHEET




  BLY87C
  VHF power transistor
Product specification                             August 1986
 Philips Semiconductors                                                                                               Product specification


    VHF power transistor                                                                                                     BLY87C

 DESCRIPTION                                    It has a 3/8" capstan envelope with a
                                                ceramic cap. All leads are isolated
 N-P-N silicon planar epitaxial
                                                from the stud.
 transistor intended for use in class-A,
 B and C operated mobile, h.f. and
 v.h.f. transmitters with a nominal
 supply voltage of 13,5 V. The
 transistor is resistance stabilized and
 is guaranteed to withstand severe
 load mismatch conditions with a
 supply over-voltage 16,5 V.



 QUICK REFERENCE DATA
 R.F. performance up to Th = 25
