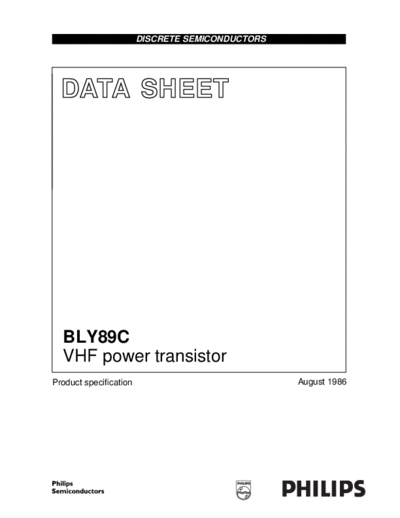

Image preview - the first page of the document



>> Download bly89c_cnv_2 documenatation <<

Text preview - extract from the document

                        DISCRETE SEMICONDUCTORS




  DATA SHEET




  BLY89C
  VHF power transistor
Product specification                             August 1986
 Philips Semiconductors                                                                         Product specification


    VHF power transistor                                                                                  BLY89C

 DESCRIPTION
 N-P-N silicon planar epitaxial
 transistor intended for use in class-A,
 B and C operated mobile, industrial
 and military transmitters with a
 nominal supply voltage of 13,5 V. The
 transistor is resistance stabilized and
 is guaranteed to withstand severe
 load mismatch conditions with a
 supply over-voltage to 16,5 V. It has a
 3/8" capstan envelope with a ceramic
 cap. All leads are isolated from the
 stud.


 QUICK REFERENCE DATA
 R.F. performance up to Th = 25
