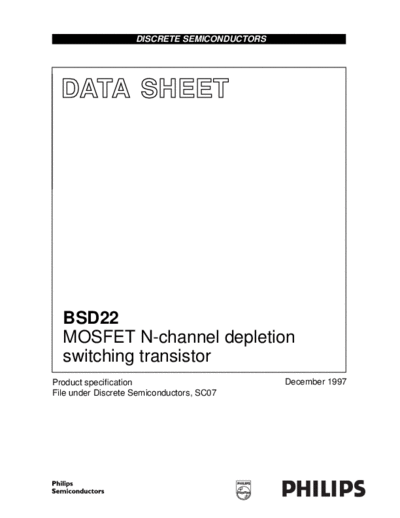

Image preview - the first page of the document
>> Download bsd22_cnv_2 documenatation <<
Text preview - extract from the document
DISCRETE SEMICONDUCTORS
DATA SHEET
BSD22
MOSFET N-channel depletion
switching transistor
Product specification December 1997
File under Discrete Semiconductors, SC07
Philips Semiconductors Product specification
MOSFET N-channel depletion switching transistor BSD22
DESCRIPTION Marking code: M32
Symmetrical insulated-gate silicon
MOS field-effect transistor of the
n-channel depletion mode type.The
transistor is sealed in a SOT143
envelope and features a low
ON-resistance and low
capacitances.The transistor is
protected against excessive input handbook, halfpage
voltages by integrated back-to-back 4 3
d
diodes between gate and substrate. b
g s
Applications:
1 2
