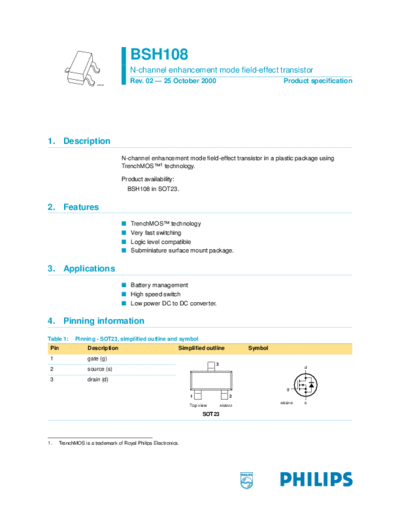

Image preview - the first page of the document
>> Download bsh108-02 documenatation <<
Text preview - extract from the document
BSH108
N-channel enhancement mode field-effect transistor
M3D088
Rev. 02 -- 25 October 2000 Product specification
1. Description
N-channel enhancement mode field-effect transistor in a plastic package using
TrenchMOSTM1 technology.
Product availability:
BSH108 in SOT23.
2. Features
s TrenchMOSTM technology
s Very fast switching
s Logic level compatible
s Subminiature surface mount package.
3. Applications
s Battery management
c
s High speed switch
c
s Low power DC to DC converter.
4. Pinning information
Table 1: Pinning - SOT23, simplified outline and symbol
Pin Description Simplified outline Symbol
1 gate (g)
3
d
2 source (s)
3 drain (d)
g
1 2
MBB076 s
Top view MSB003
SOT23
1. TrenchMOS is a trademark of Royal Philips Electronics.
Philips Semiconductors BSH108
N-channel enhancement mode field-effect transistor
5. Quick reference data
Table 2: Quick reference data
Symbol Parameter Conditions Typ Max Unit
VDS drain-source voltage (DC) Tj = 25 to 150 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
