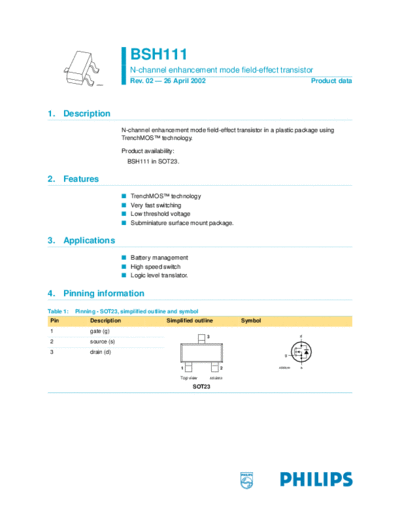

Image preview - the first page of the document



>> Download bsh111 documenatation <<

Text preview - extract from the document

                                  BSH111
                                  N-channel enhancement mode field-effect transistor
                  M3D088
                                  Rev. 02 -- 26 April 2002                                          Product data



1. Description
                              N-channel enhancement mode field-effect transistor in a plastic package using
                              TrenchMOSTM technology.

                              Product availability:
                                  BSH111 in SOT23.


2. Features
                              s    TrenchMOSTM technology
                              s    Very fast switching
                              s    Low threshold voltage
                              s    Subminiature surface mount package.


3. Applications
                              s Battery management
                              s High speed switch
                              s Logic level translator.


4. Pinning information
Table 1:   Pinning - SOT23, simplified outline and symbol
Pin             Description                    Simplified outline             Symbol
1               gate (g)
                                                                 3                              d
2               source (s)
3               drain (d)
                                                                                          g


                                                      1                  2             MBB076   s

                                                      Top view       MSB003

                                                           SOT23
Philips Semiconductors                                                                                                    BSH111
                                                                     N-channel enhancement mode field-effect transistor


5. Quick reference data
Table 2:         Quick reference data
Symbol Parameter                                       Conditions                                     Typ                Max                Unit
VDS              drain-source voltage (DC)             25
