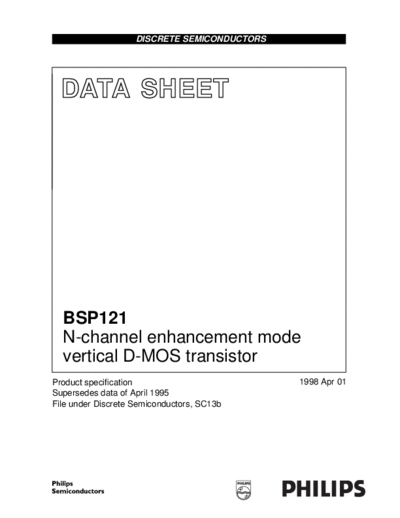

Image preview - the first page of the document



>> Download bsp121_cnv_3 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BSP121
  N-channel enhancement mode
  vertical D-MOS transistor
Product specification                         1998 Apr 01
Supersedes data of April 1995
File under Discrete Semiconductors, SC13b
Philips Semiconductors                                                                              Product specification

  N-channel enhancement mode vertical
                                                                                                           BSP121
  D-MOS transistor

DESCRIPTION                                  QUICK REFERENCE DATA
N-channel enhancement mode                    Drain source voltage                       VDS       max.     200 V
vertical D-MOS transistor in a                Gate-source voltage (open drain)
