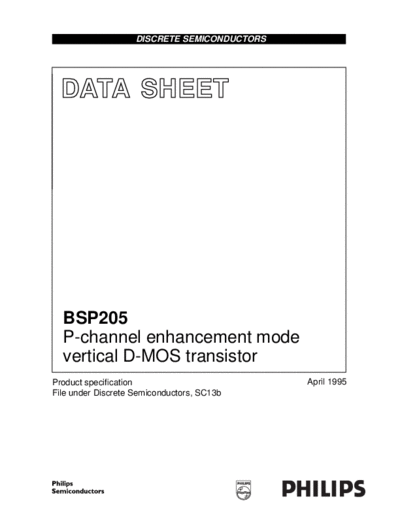

Image preview - the first page of the document



>> Download bsp205 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BSP205
  P-channel enhancement mode
  vertical D-MOS transistor
Product specification                         April 1995
File under Discrete Semiconductors, SC13b
Philips Semiconductors                                                                            Product specification

  P-channel enhancement mode vertical
                                                                                                          BSP205
  D-MOS transistor

DESCRIPTION                                 QUICK REFERENCE DATA
P-channel enhancement mode                   Drain-source voltage                      -VDS        max.      60 V
vertical D-MOS transistor in a               Drain current (DC)                        -ID         max.     275 mA
miniature SOT223 envelope and
                                             Drain-source ON-resistance
intended for use in relay, high-speed
and line-transformer drivers.                       -ID = 200 mA; -VGS = 10 V          RDS(on)     max.      10
                                             Gate threshold voltage                    -VGS(th)    max.     3.5 V
FEATURES
