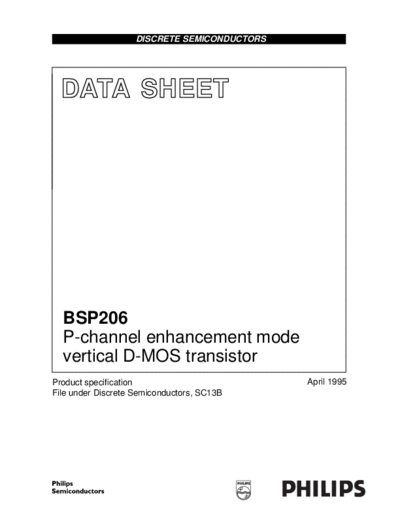

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BSP206
  P-channel enhancement mode
  vertical D-MOS transistor
Product specification                         April 1995
File under Discrete Semiconductors, SC13B
Philips Semiconductors                                                                            Product specification

  P-channel enhancement mode vertical
                                                                                                         BSP206
  D-MOS transistor

DESCRIPTION                                 QUICK REFERENCE DATA
P-channel enhancement mode                   Drain-source voltage                    -VDS       max.       60 V
vertical D-MOS transistor in a               Drain current (DC)                      -ID        max.      350 mA
miniature SOT223 envelope and
                                             Drain-source ON-resistance
intended for use in relay, high-speed                                                RDS(on)    max.         6
                                               -ID = 200 mA; -VGS = 10 V
and line-transformer drivers.
                                             Gate threshold voltage                  -VGS(th)   max.       3.5 V

FEATURES
                                            PINNING - SOT223
