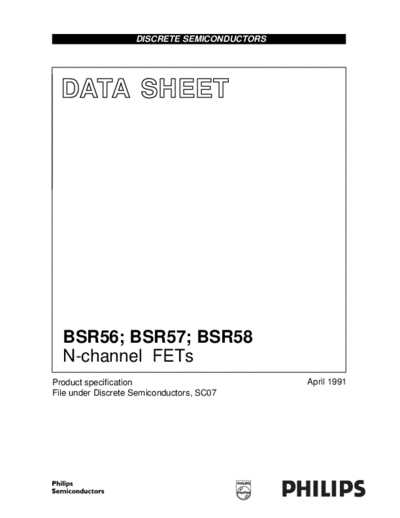

Image preview - the first page of the document



>> Download bsr56_bsr57_bsr58 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BSR56; BSR57; BSR58
  N-channel FETs
Product specification                         April 1991
File under Discrete Semiconductors, SC07
Philips Semiconductors                                                                                   Product specification


    N-channel FETs                                                                     BSR56; BSR57; BSR58

DESCRIPTION
Symmetrical silicon n-channel
depletion type junction field-effect
transistors in a plastic microminiature
envelope intended for application in
thick and thin-film circuits. The
transistors are intended for                 handbook, halfpage            3
low-power, chopper or switching
applications in industrial service.                                                                      d
                                                                                                g
                                                                                                         s

PINNING                                                     1                      2

1    = drain                                               Top view                             MAM385

2    = source
3    = gate

Note
1. Drain and source are                              Fig.1 Simplified outline and symbol, SOT23.
   interchangeable.

Marking code
BSR56 = M4P
BSR57 = M5P
BSR58 = M6P


QUICK REFERENCE DATA

                                                                                       BSR56        BSR57         BSR58
Drain-source voltage
