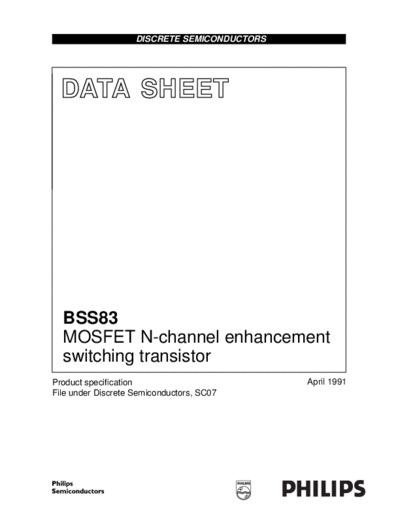

Image preview - the first page of the document
>> Download bss83_cnv_2 documenatation <<
Text preview - extract from the document
DISCRETE SEMICONDUCTORS
DATA SHEET
BSS83
MOSFET N-channel enhancement
switching transistor
Product specification April 1991
File under Discrete Semiconductors, SC07
Philips Semiconductors Product specification
MOSFET N-channel enhancement switching transistor BSS83
DESCRIPTION Marking code:
Symmetrical insulated-gate silicon BSS83 = M74
MOS field-effect transistor of the
N-channel enhancement mode type.
The transistor is sealed in a SOT143
envelope and features a low ON
resistance and low capacitances. The
transistor is protected against
excessive input voltages by
integrated back-to-back diodes
between gate and substrate.
handbook, halfpage
4 3
d
APPLICATIONS b
g s
