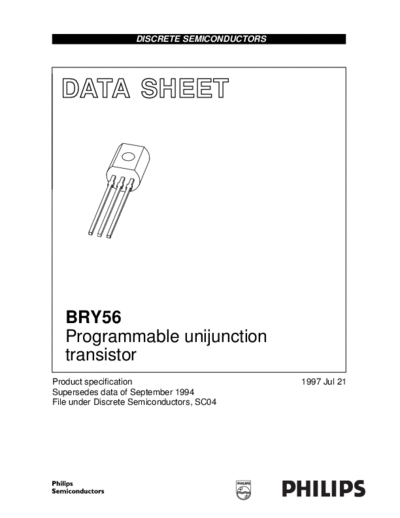

Image preview - the first page of the document



>> Download bry56_cnv_2 documenatation <<

Text preview - extract from the document

                     DISCRETE SEMICONDUCTORS




  DATA SHEET
 book, halfpage




                   M3D186




    BRY56
    Programmable unijunction
    transistor
Product specification                          1997 Jul 21
Supersedes data of September 1994
File under Discrete Semiconductors, SC04
Philips Semiconductors                                                                              Product specification


  Programmable unijunction transistor                                                                              BRY56

DESCRIPTION                             PINNING
Planar PNPN trigger device in a                PIN                                    DESCRIPTION
TO-92; SOT54 plastic package.
                                                1             gate
                                                2             anode
APPLICATIONS
                                                3             cathode
