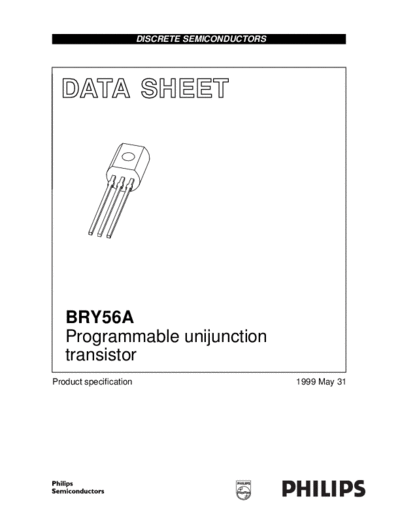

Image preview - the first page of the document



>> Download bry56a_1 documenatation <<

Text preview - extract from the document

                        DISCRETE SEMICONDUCTORS




  DATA SHEET
 book, halfpage




                    M3D186




    BRY56A
    Programmable unijunction
    transistor
Product specification                             1999 May 31
Philips Semiconductors                                                                                 Product specification


  Programmable unijunction transistor                                                                              BRY56A

DESCRIPTION                                  PINNING
Planar PNPN trigger device in a                  PIN                                 DESCRIPTION
TO-92; SOT54 plastic package.
                                                   1         gate
                                                   2         anode
APPLICATIONS
                                                   3         cathode
