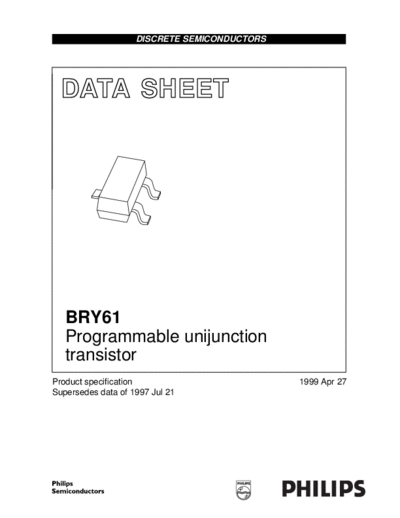

Image preview - the first page of the document



>> Download bry61_3 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET

 book, halfpage




                         M3D088




    BRY61
    Programmable unijunction
    transistor
Product specification                         1999 Apr 27
Supersedes data of 1997 Jul 21
Philips Semiconductors                                                                                      Product specification


  Programmable unijunction transistor                                                                                   BRY61

DESCRIPTION                              PINNING
Planar PNPN trigger device in a               PIN                                   DESCRIPTION
SOT23 plastic package.
                                              1          anode
                                              2          cathode
APPLICATIONS
                                              3          gate
