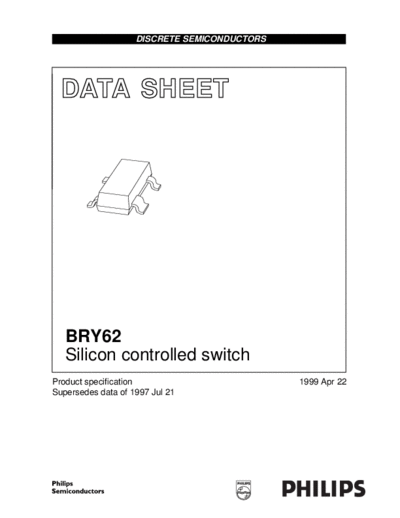

Image preview - the first page of the document



>> Download bry62_3 documenatation <<

Text preview - extract from the document

                     DISCRETE SEMICONDUCTORS




  DATA SHEET



                   M3D071




   BRY62
   Silicon controlled switch
Product specification                          1999 Apr 22
Supersedes data of 1997 Jul 21
Philips Semiconductors                                                                                   Product specification


  Silicon controlled switch                                                                                            BRY62

DESCRIPTION                                PINNING
Silicon planar PNPN switch in a                 PIN                                    DESCRIPTION
SOT143B plastic package. It is an
                                                 1               anode gate
integrated PNP/NPN transistor pair,
with all electrodes accessible.                  2               anode
                                                 3               cathode
APPLICATIONS                                     4               cathode gate
