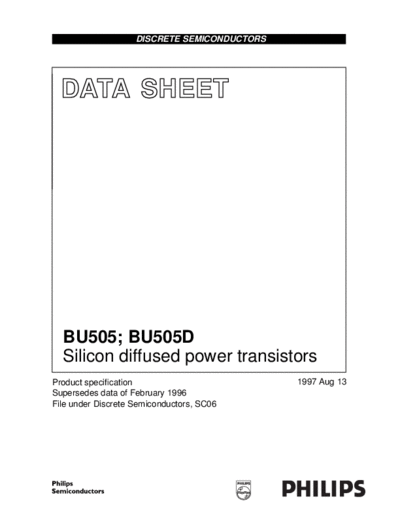

Image preview - the first page of the document



>> Download bu505_1 documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BU505; BU505D
  Silicon diffused power transistors
Product specification                         1997 Aug 13
Supersedes data of February 1996
File under Discrete Semiconductors, SC06
Philips Semiconductors                                                                                   Product specification


     Silicon diffused power transistors                                                          BU505; BU505D

DESCRIPTION
High-voltage, high-speed switching
NPN power transistor in a TO-220AB
package. The BU505D has an
integrated efficiency diode.                                                                                         2
                                                                                       2

APPLICATIONS                                                                                              1
                                                                                 1
