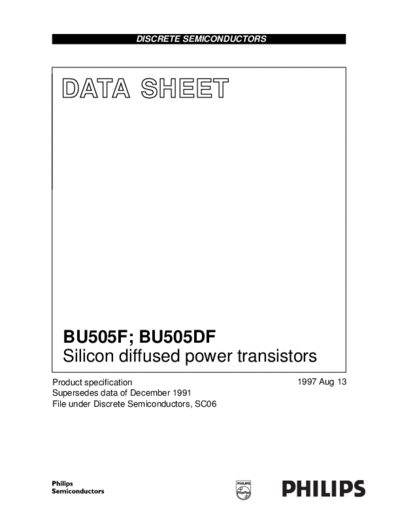

Image preview - the first page of the document



>> Download bu505f documenatation <<

Text preview - extract from the document

                    DISCRETE SEMICONDUCTORS




  DATA SHEET




  BU505F; BU505DF
  Silicon diffused power transistors
Product specification                         1997 Aug 13
Supersedes data of December 1991
File under Discrete Semiconductors, SC06
Philips Semiconductors                                                                                 Product specification


     Silicon diffused power transistors                                                        BU505F; BU505DF

DESCRIPTION
High-voltage, high-speed,
glass-passivated NPN power
transistor in a SOT186 package with
electrically isolated mounting base.
The BU505DF has an integrated                                                                                             2
efficiency diode.                                                                          2


                                                                                     1                     1
APPLICATIONS
