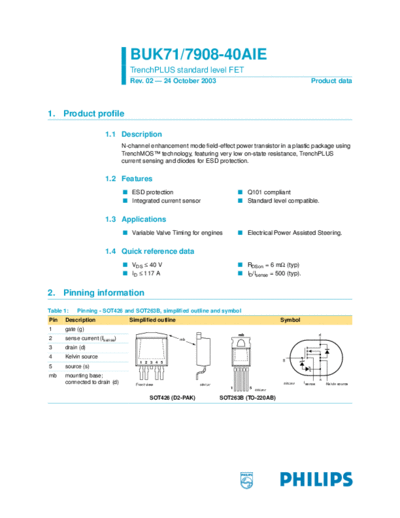

Image preview - the first page of the document
buk7108-40aie_buk7908-40aie


>> Download buk7108-40aie_buk7908-40aie documenatation <<

Text preview - extract from the document
                                  BUK71/7908-40AIE
                                  TrenchPLUS standard level FET
                                  Rev. 02 -- 24 October 2003                                                 Product data



1. Product profile

                       1.1 Description
                               N-channel enhancement mode field-effect power transistor in a plastic package using
                               TrenchMOSTM technology, featuring very low on-state resistance, TrenchPLUS
                               current sensing and diodes for ESD protection.

                       1.2 Features
                               s ESD protection                               s Q101 compliant
                               s Integrated current sensor                    s Standard level compatible.


                       1.3 Applications
                               s Variable Valve Timing for engines            s Electrical Power Assisted Steering.


                       1.4 Quick reference data
                               s VDS  40 V                                    s RDSon = 6 m (typ)
                               s ID  117 A                                    s ID/Isense = 500 (typ).


2. Pinning information
Table 1:   Pinning - SOT426 and SOT263B, simplified outline and symbol
Pin   Description                Simplified outline                                             Symbol
1     gate (g)
                                                                              mb                                   d
2     sense current (Isense)                          mb

3     drain (d)
4     Kelvin source                                                                             g
                                      1 2 3 4 5
5     source (s)
mb    mounting base;
                                                                                                                   s
      connected to drain (d)        Front view                MBK127                             MBL368   Isense       Kelvin source
                                                                          1        5
                                                                                       MBL263


                                            SOT426 (D2-PAK)            SOT263B (TO-220AB)
Philips Semiconductors                                                                      BUK71/7908-40AIE
                                                                                                   TrenchPLUS standard level FET


3. Ordering information
Table 2:         Ordering information
Type number                Package
                           Name             Description                                                                                           Version
BUK7108-40AIE              D2-PAK           Plastic single-ended surface mounted package; 5 leads (one lead cropped) SOT426
BUK7908-40AIE              TO-220           Plastic single-ended package; heatsink mounted; 1 mounting hole; 5-leads SOT263B


4. Limiting values
Table 3: Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol             Parameter                                     Conditions                                      Min                Max                Unit
VDS                drain-source voltage (DC)                                                                     -                  40                 V
VDGR               drain-gate voltage (DC)                        RGS = 20 k                                     -                  40                 V
VGS                gate-source voltage (DC)                                                                      -
