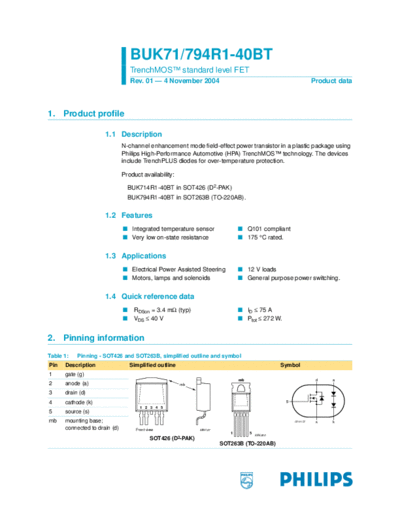

Image preview - the first page of the document



>> Download buk714r1-40bt_buk794r1-40bt documenatation <<

Text preview - extract from the document

                                   BUK71/794R1-40BT
                                   TrenchMOSTM standard level FET
                                   Rev. 01 -- 4 November 2004                                                  Product data



1. Product profile

                      1.1 Description
                               N-channel enhancement mode field-effect power transistor in a plastic package using
                               Philips High-Performance Automotive (HPA) TrenchMOSTM technology. The devices
                               include TrenchPLUS diodes for over-temperature protection.

                               Product availability:

                                 BUK714R1-40BT in SOT426 (D2-PAK)
                                 BUK794R1-40BT in SOT263B (TO-220AB).

                      1.2 Features
                               s Integrated temperature sensor                 s Q101 compliant
                               s Very low on-state resistance                  s 175
