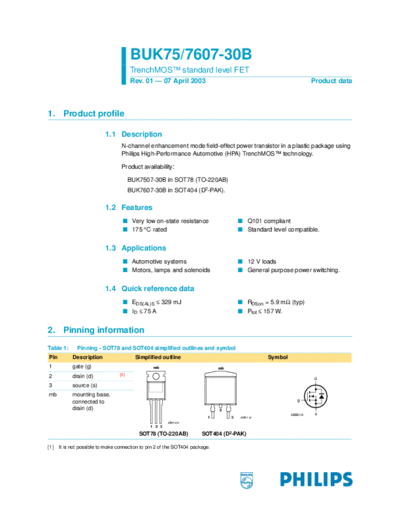

                                       BUK75/7607-30B
                                       TrenchMOSTM standard level FET
                                       Rev. 01 -- 07 April 2003                                                    Product data



1. Product profile

                           1.1 Description
                                  N-channel enhancement mode field-effect power transistor in a plastic package using
                                  Philips High-Performance Automotive (HPA) TrenchMOSTM technology.

                                  Product availability:

                                       BUK7507-30B in SOT78 (TO-220AB)
                                       BUK7607-30B in SOT404 (D2-PAK).

                           1.2 Features
                                   s Very low on-state resistance                      s Q101 compliant
                                   s 175
