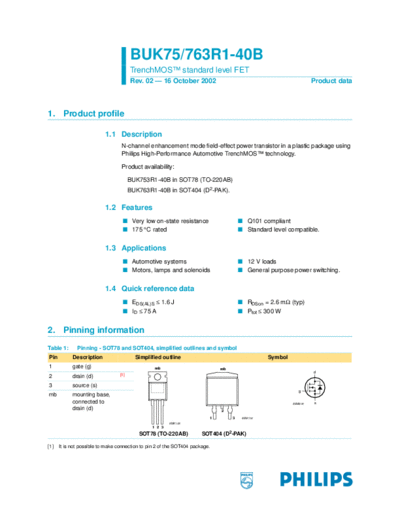

buk753r1-40b_buk763r1-40b


>> Download buk753r1-40b_buk763r1-40b documenatation <<

Text preview - extract from the document
                                       BUK75/763R1-40B
                                       TrenchMOSTM standard level FET
                                       Rev. 02 -- 16 October 2002                                                  Product data



1. Product profile

                           1.1 Description
                                  N-channel enhancement mode field-effect power transistor in a plastic package using
                                  Philips High-Performance Automotive TrenchMOSTM technology.

                                  Product availability:

                                       BUK753R1-40B in SOT78 (TO-220AB)
                                       BUK763R1-40B in SOT404 (D2-PAK).

                           1.2 Features
                                   s Very low on-state resistance                      s Q101 compliant
                                   s 175
