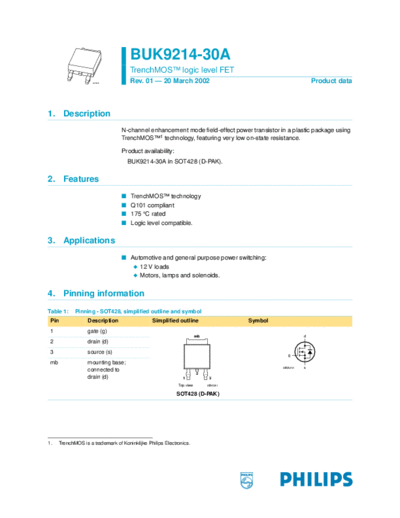

Image preview - the first page of the document



>> Download buk9214-30a documenatation <<

Text preview - extract from the document

                                      BUK9214-30A
                                      TrenchMOSTM logic level FET
                     M3D300
                                      Rev. 01 -- 20 March 2002                                             Product data



1. Description
                                  N-channel enhancement mode field-effect power transistor in a plastic package using
                                  TrenchMOSTM1 technology, featuring very low on-state resistance.

                                  Product availability:
                                      BUK9214-30A in SOT428 (D-PAK).


2. Features
                                  s    TrenchMOSTM technology
                                  s    Q101 compliant
                                  s    175
