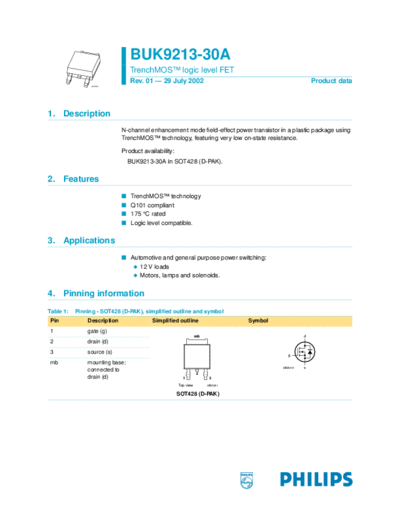

                                 BUK9213-30A
                                 TrenchMOSTM logic level FET
                                 Rev. 01 -- 29 July 2002                                            Product data
                 M3D300




1. Description
                             N-channel enhancement mode field-effect power transistor in a plastic package using
                             TrenchMOSTM technology, featuring very low on-state resistance.

                             Product availability:
                                 BUK9213-30A in SOT428 (D-PAK).


2. Features
                             s    TrenchMOSTM technology
                             s    Q101 compliant
                             s    175
