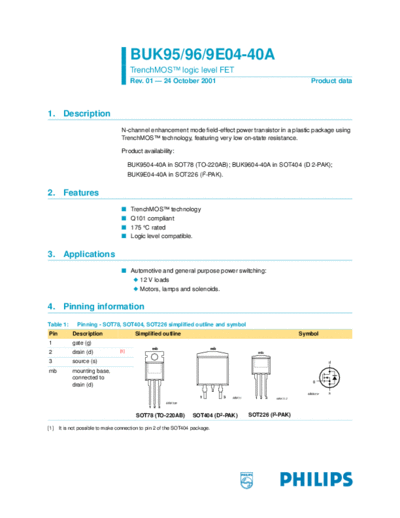

Image preview - the first page of the document
>> Download buk9504-40a_buk9604-40a_buk9e04-40a documenatation <<
Text preview - extract from the document
BUK95/96/9E04-40A
TrenchMOSTM logic level FET
Rev. 01 -- 24 October 2001 Product data
1. Description
N-channel enhancement mode field-effect power transistor in a plastic package using
TrenchMOSTM technology, featuring very low on-state resistance.
Product availability:
BUK9504-40A in SOT78 (TO-220AB); BUK9604-40A in SOT404 (D 2-PAK);
BUK9E04-40A in SOT226 (I2-PAK).
2. Features
s TrenchMOSTM technology
s Q101 compliant
