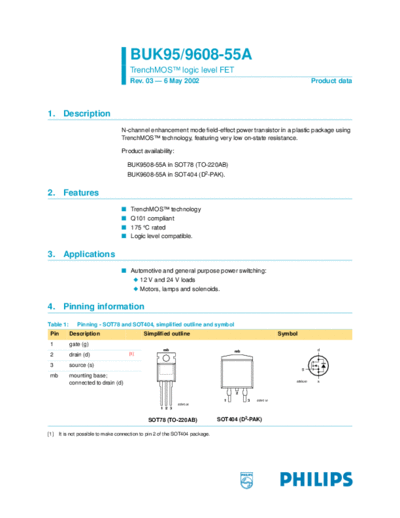

Image preview - the first page of the document



>> Download buk9508-55a_buk9608-55a documenatation <<

Text preview - extract from the document

                                      BUK95/9608-55A
                                      TrenchMOSTM logic level FET
                                      Rev. 03 -- 6 May 2002                                                         Product data



1. Description
                                  N-channel enhancement mode field-effect power transistor in a plastic package using
                                  TrenchMOSTM technology, featuring very low on-state resistance.

                                  Product availability:

                                      BUK9508-55A in SOT78 (TO-220AB)
                                      BUK9608-55A in SOT404 (D2-PAK).


2. Features
                                  s    TrenchMOSTM technology
                                  s    Q101 compliant
                                  s    175
