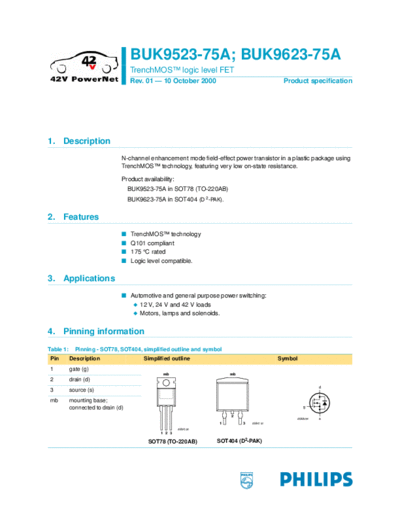

Image preview - the first page of the document



>> Download buk9523-75a_buk9623-75a documenatation <<

Text preview - extract from the document

                                     BUK9523-75A; BUK9623-75A
                                     TrenchMOSTM logic level FET
                                     Rev. 01 -- 10 October 2000                           Product specification




1. Description
                                N-channel enhancement mode field-effect power transistor in a plastic package using
                                TrenchMOSTM technology, featuring very low on-state resistance.

                                Product availability:
                                    BUK9523-75A in SOT78 (TO-220AB)
                                    BUK9623-75A in SOT404 (D 2-PAK).


2. Features
                                s    TrenchMOSTM technology
                                s    Q101 compliant
                                s    175
